Product Summary
The ATMEGA1280-16AU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA1280-16AU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
Absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any Pin except RESET with respect to Ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 mA.
Features
Features: (1)High-performance, Low-power AVR 8-bit Microcontroller; (2)Advanced RISC Architecture; (3)Non-volatile Program and Data Memories; (4)JTAG (IEEE std. 1149.1 Compliant) Interface; (5)Peripheral Features; (6)Special Microcontroller Features; (7)I/O and Packages: 54/86 Programmable I/O Lines, 100-lead TQFP, 100-ball CBGA.

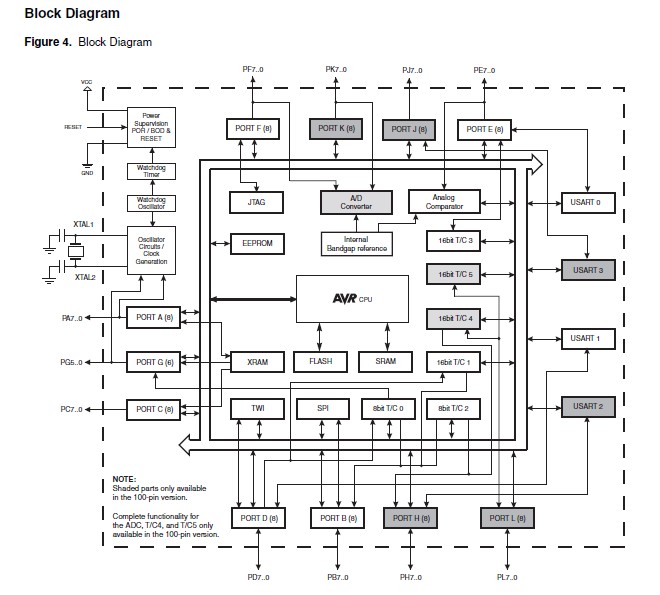

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATMEGA1280-16AU |
Atmel |
8-bit Microcontrollers (MCU) 128kB Flash 4kB EEPROM 86 I/O Pins |
Data Sheet |
|
|
||||||||||||
 |
ATMEGA1280-16AUR |
Atmel |
8-bit Microcontrollers (MCU) AVR 128K FLASH 8K SRAM,4KB EEPROM |
Data Sheet |
|
|
||||||||||||
